[Python]최단 경로 알고리즘 : Dijkstra Algorithm, Floyd Washall

1. 다익스트라 알고리즘

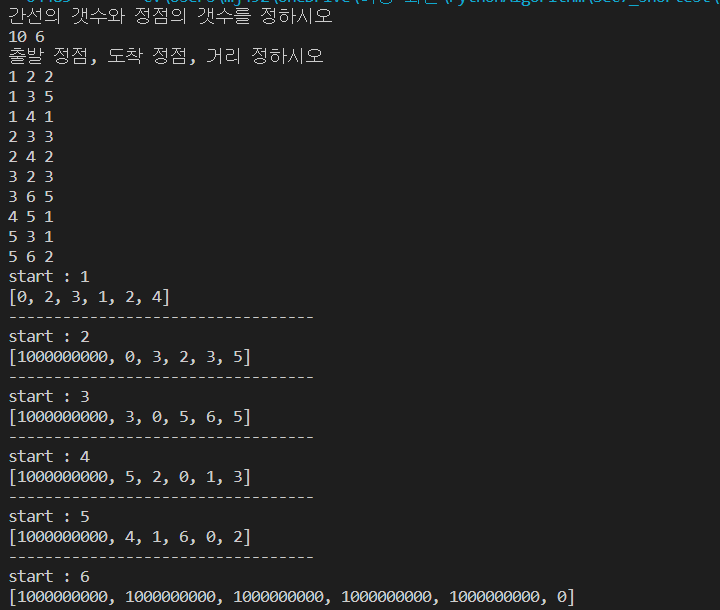

1-1. 순차탐색을 이용한 다익스트라

INF = int(1e9)

def get_min_distance(res, visited):
    min_val = INF
    idx=0
    for i in range(1,len(res)):
        if(visited[i]==0 and min_val>res[i]):
            min_val = res[i]
            idx = i

    return idx



def dijkstra(graph, E,V, start, res):

    visited = [0]*(V+1)
    #초기화
    res[start]=0

    for j in range(1,V+1):
        for i in range(1,V+1):
            now= get_min_distance(res,visited)
            visited[now]=1
            for now_to, distance in graph[now]:
                if(res[now]+distance < res[now_to]):
                    res[now_to]=res[now]+distance

            #print(f"STEP {j}: distance: {res[1:]}")
            #print(f"           found: {visited[1:]}")
            #print()
    print(res[1:])




def main():

    print("간선의 갯수와 정점의 갯수를 정하시오 ")
    E,V = map(int,input().split())


    graph=[[] for _ in range(V+1)]

    print("출발 정점, 도착 정점, 거리 정하시오")
    for _ in range(E):
        #[[2,3]] : 1번째 정점->2번째 정점 (거리:3)
        start, to, distance = map(int, input().split())
        graph[start].append([to,distance])

    for i in range(1,V+1):
        res=[INF]*(V+1)

        print("start : {}".format(i))
        dijkstra(graph, E,V, i,res)
        print("----------------------------------")


if __name__=="__main__":
    main()

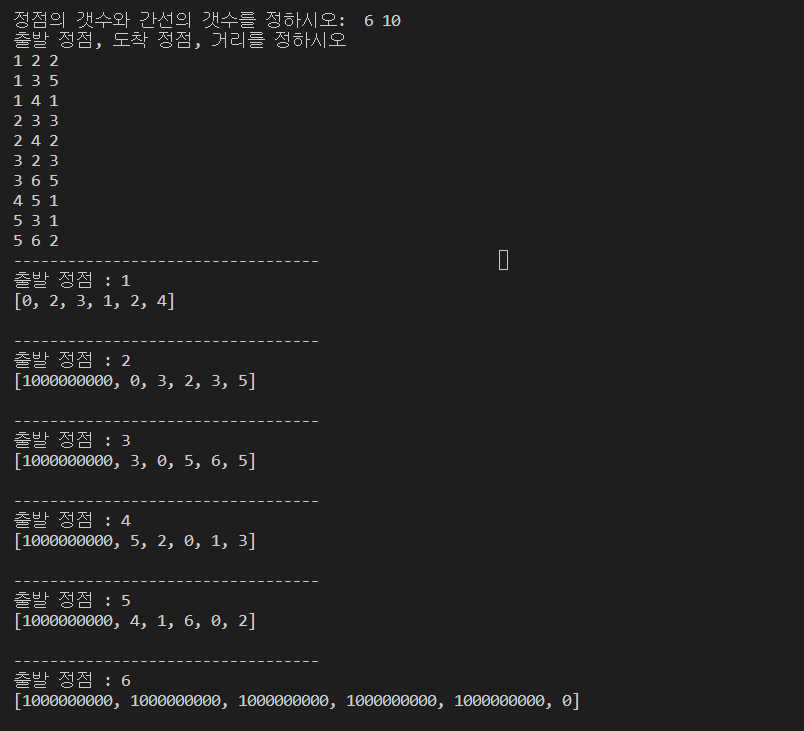

1-2. 우선순위 큐를 이용한 다익스트라

import heapq
INF = int(1e9)

def dijkstra(graph, V, distance,start):
    distance[start]=0
    heap =[]
    #(거리, 노드)순으로 힙에 삽입한다
    heapq.heappush(heap,(0,start))
    while(heap):
        val,now = heapq.heappop(heap)
        if(val > distance[now]):
            continue

        for now_to, dis in graph[now]:
            if(val+dis<distance[now_to]):
                distance[now_to]=val+dis
                heapq.heappush(heap, (distance[now_to], now_to))


def main():
    print("정점의 갯수와 간선의 갯수를 정하시오: ", end=" ")
    V,E = map(int, input().split())

    graph=[[] for _ in range(V+1)]
    print("출발 정점, 도착 정점, 거리를 정하시오 ")
    for _ in range(E):
        start, end, val= map(int, input().split())
        graph[start].append((end,val))

    for i in range(1,V+1):
        print("----------------------------------")
        print(f"출발 정점 : {i}")
        distance=[INF]*(V+1)
        dijkstra(graph,V,distance,i)
        print(distance[1:])
        print()




if __name__=="__main__":
    main()


cf> 참고
이때, 아래 코드에서 크거나 같으면 안되는 이유는 처음에 세팅할 때 출발정점에 대해서는 distance값을 0으로 설정하는데 heapq에 push할 때 (0, start) 튜플을 삽입하기에 해당 조건문을 통과시키기 위해 ≥는 불가능하다

if(val > distance[now]): continue

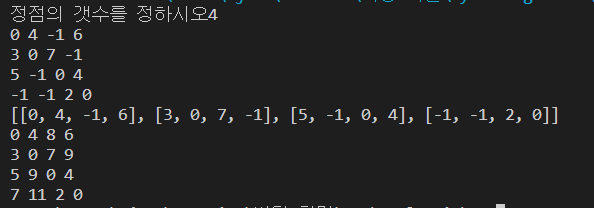

2. 플로이드 와샬 알고리즘

INF = int(1e9)

def Floyd_Washall(graph,V):
    res=[[0]*(V) for _ in range(V)]

    for i in range(V):
        for j in range(V):
            if(graph[i][j]==-1):
                res[i][j]=INF
            else:
                res[i][j]=graph[i][j]


    for mid in range(V):
        for start in range(V):
            for end in range(V):
                if(mid==start or mid==end or start==end):
                    continue
                else:
                    if(res[start][mid]+res[mid][end]<res[start][end]):
                        res[start][end]=res[start][mid]+res[mid][end]

    for i in range(V):
        for j in range(V):
            print(res[i][j], end=" ")
        print()



def main():
    V= int(input("정점의 갯수를 정하시오"))
    graph = []

    for i in range(V):
        graph.append(list(map(int,input().split())))

    print(graph)

    Floyd_Washall(graph,V)



if __name__=="__main__":
    main()



3. 예제

(1) 전보

import heapq

INF= int(1e9)

def dijkstra(graph, N, start,distance):
    heap = []
    heapq.heappush(heap,(0, start))
    distance[start]=0
    while(heap):
        #start->now까지 걸리는 시간
        value, now = heapq.heappop(heap)
        #이때 start->now까지 걸리는 시간이 업뎃해주는 표의 시간보다 더 걸린다면 pass
        if(value >distance[now]):
            continue


        for now_to, time in graph[now]:
            if(value+time < distance[now_to]):
                distance[now_to]=value+time
                heapq.heappush(heap,(distance[now_to],now_to))

    total=0 #총 걸리는 시간
    num=0 #메세지 받는 도시
    for i in range(1,N+1):
        if(distance[i]!=INF and i!=start):
            total +=distance[i]
            num+=1

    return total, num

def main():
    #도시의 갯수, 통로의 갯수, 메세지 보내고자 하는 도시
    N,M,C = map(int, input().split())
    graph=[[] for _ in range(N+1)]
    for i in range(M):
    #출발점, 도착점, 걸리는 시간
        X,Y,Z = map(int, input().split())
        graph[X].append((Y,Z))

    distance=[INF]*(N+1)
    #메세지를 받는 도시의 갯수와 걸리는 시간 출력(이때 자기자신은 제외)
    total, num = dijkstra(graph, N,C, distance)
    print(num, total)



if __name__=="__main__":
    main()



(2)미래 도시

1) 우선순위 큐 이용한 다익스트라로 구현

import heapq
INF = int(1e9)
def dijkstra(graph, N,start, end):
    res=[INF]*(N+1)
    res[start]=0
    heap=[]
    heapq.heappush(heap, (0,start))

    while(heap):
        time, now = heapq.heappop(heap)
        if(time > res[now]):
            continue
        for time_to, now_to in graph[now]:
            if(time+time_to < res[now_to]):
                res[now_to]=time+time_to
                heapq.heappush(heap,(res[now_to], now_to))

    return res[end]

def main():
    #전체 회사의 개수, 경로의 개수
    N,M = map(int, input().split())
    graph=[[] for _ in range(N+1)]

    for _ in range(M):
        start, end = map(int, input().split())
        graph[start].append((1,end))
        graph[end].append((1,start))
    #물건 판매하러 가는 최종 목적지, 중간에 커피 마시는 곳
    X,K= map(int, input().split())

    start_K=dijkstra(graph,N,1,K)
    K_X =  dijkstra(graph,N,K,X)

    if(start_K ==INF or K_X ==INF):
        print(-1)
    else:
        print(start_K+K_X)






if __name__=="__main__":
    main()

2) 플로이드 와샬 알고리즘 이용

INF = int(1e9)

def Floyd_Washall(graph,N, start, end):

    distance=[[0]*N for _ in range(N)]
    for i in range(N):
        for j in range(N):
            distance[i][j]=graph[i][j]


    for mid in range(N):
        for s in range(N):
            for e in range(N):
                if(mid!=s and mid!=e and s!=e):
                    if(distance[s][mid]+distance[mid][e]<distance[s][e]):
                        distance[s][e]=distance[s][mid]+distance[mid][e]

    return distance[start][end]

def main():
    #전체 회사갯수, 경로 갯수
    N,M = map(int, input().split())
    graph =[[INF]*(N) for _ in range(N)]
    for i in range(N):
        for j in range(N):
            if(i==j):
                graph[i][j]=0

    for _ in range(M):
        start, end = map(int, input().split())
        graph[start-1][end-1]=1
        graph[end-1][start-1]=1

    #최종목적지, 거쳐가는 곳
    X, K = map(int, input().split())
    start_K=Floyd_Washall(graph,N, 0, K-1)
    K_X = Floyd_Washall(graph, N,K-1,X-1)

    if(start_K == INF or K_X==INF):
        print(-1)
    else:
        print(start_K + K_X)






if __name__=="__main__":
    main()
